Garage door safety sensors are a critical safety feature for any modern garage door system. They use an invisible infrared beam across the door opening to detect people or objects. If the beam is broken while the door is closing, the sensor signals the opener to stop and reverse the door’s direction. Before beginning any adjustments, always disconnect power to prevent accidental operation.
When your garage door suddenly refuses to close or reverses unexpectedly, a misaligned sensor is the most frequent cause. Learning how to align garage door sensors is a simple yet essential maintenance task. This guide provides the clear steps you need to safely and accurately realign your sensors.
Recognizing Misaligned Garage Door Sensors
A misaligned or blocked sensor often causes frustrating garage door malfunctions. The door will refuse to close or will stop closing before it reaches the floor and reverse open. Recognizing the signs quickly helps you solve the problem fast. If the problem persists after troubleshooting, you may require professional sensor repair services.
The most common signs of a misaligned sensor include:
-
Door won’t close completely: The door will not close all the way, or it reverses immediately after starting.
-
Blinking or off indicator lights: Most sensors have an LED light that should be solid (steady) when they are properly aligned. A blinking, dim, or unlit light on the receiving sensor typically signals an alignment issue.
-
Opener light flashing: The light on your garage door opener unit may blink rapidly to signal that the photo eyes are misaligned or blocked.

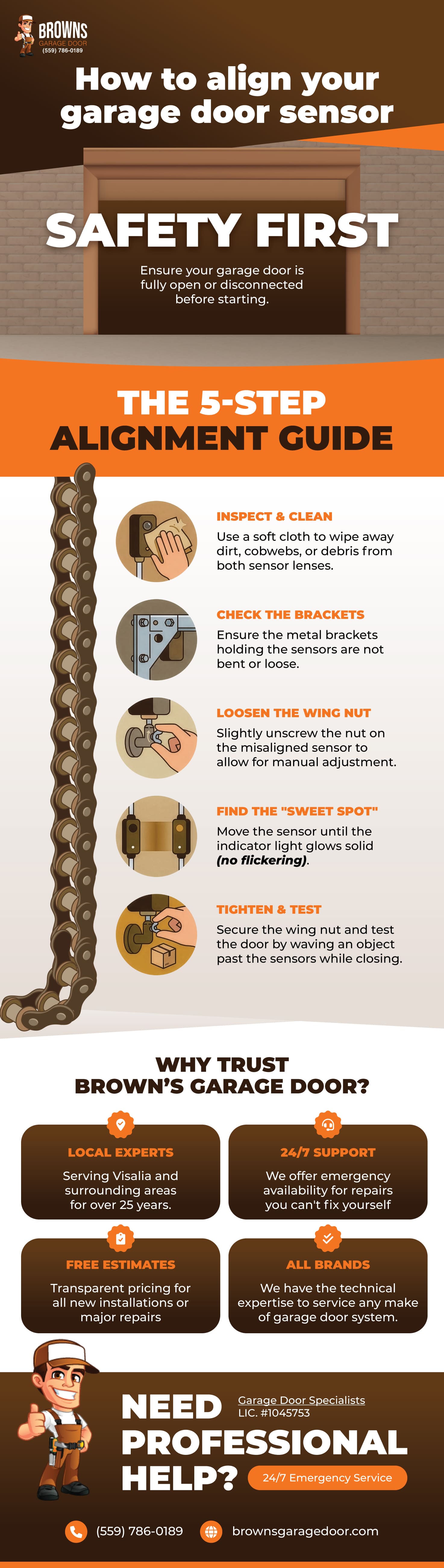

Step-by-Step: How to Align Garage Door Sensors
Realigning your sensors is a task many homeowners can handle, often taking less than five minutes. However, safety should always be your top priority. If you encounter frayed wires or other damage, stop and call a professional.
1. Prioritize Safety and Prepare the Area
The very first step for any DIY garage door repair or adjustment is to turn off the power. Locate your circuit breaker box and flip the switch to cut the power to your garage door opener. This prevents accidental door movement while you work.

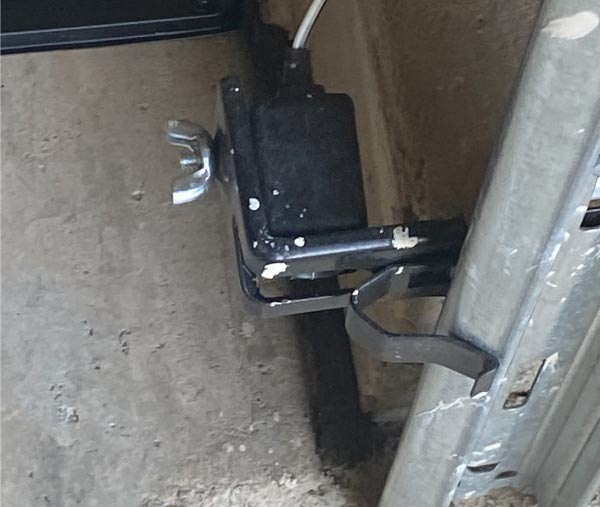

Next, inspect the entire garage door area. Remove any obstructions, even small items like spiderwebs, dirt, or leaves, as they can block the infrared signal. Clean the lenses of both sensors with a soft, clean cloth to remove any dust or grime.

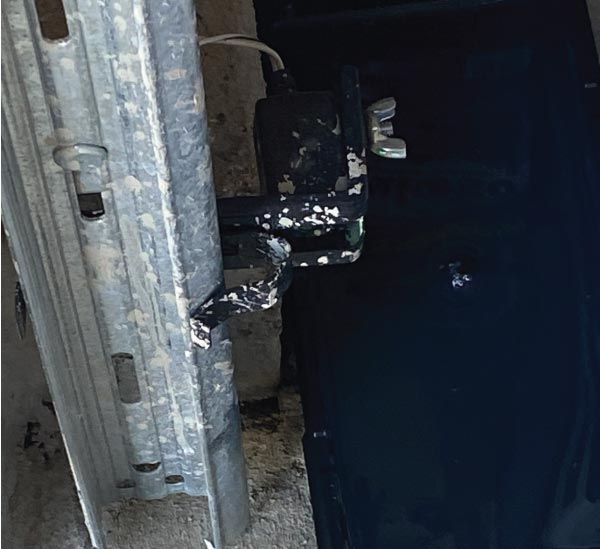

2. Locate and Loosen the Sensor Brackets
Your safety sensors are typically mounted on each side of the garage door tracks, no higher than 6 inches off the floor. They should face each other directly.
Use a Phillips-head screwdriver or wrench to loosen the screws or wing nuts holding the sensor brackets. You only need to loosen them enough so you can move the sensor, not remove them entirely. The goal is to allow for gentle adjustment.
3. Align the Sensor Lenses
Adjust the sensor that has a blinking, dim, or unlit LED (usually the receiving sensor). Gently move and twist the sensor until the indicator light is solid and steady. This steady light confirms the infrared beam is correctly connecting between the sending and receiving sensors.
Tip for Precision: For the best accuracy when learning how to align garage door sensors, you can use a level to ensure both sensors are at the exact same height. Some professionals also use a taut string tied between the two sensors to ensure perfect horizontal alignment.
4. Secure and Test the System
Once the light is solid on both sensors, tighten the screws or wing nuts on the mounting brackets to secure the sensors in place. Be careful not to bump or move the sensors while tightening them.
Restore power to the garage door by flipping the circuit breaker switch back on. Press the wall button or remote to test the door. It should close smoothly without reversing.
5. Verify the Safety Reversal Feature
The final and most crucial step is testing the safety feature. Place a 2×4 piece of wood laid flat on the floor, centered in the door’s path. Press the remote to close the door. The door must stop and reverse instantly upon contact with the object to confirm the sensor alignment is correct and safe.
When to Call for Professional Sensor Repair
If you’ve tried adjusting the sensors and the problem persists, it might be time to consider professional assistance. While a simple adjustment often resolves misalignment, sometimes the issue is more complex. You may need professional assistance if:
- The sensors remain unresponsive after cleaning and realignment attempts.
- There is visible physical damage to the sensors, like cracked housings or bent mounting brackets.
- You notice frayed, loose, or damaged wiring running to the sensors.
- Your garage door opener is flashing a diagnostic error code, or the problem persists repeatedly.
If you find yourself repeatedly needing to know how to align garage door sensors, the brackets or wiring may be the underlying problem.
For issues beyond a quick fix, such as complex wiring problems or physical damage, calling a qualified professional is the safest solution. Our certified technicians can handle your specialized Sensor repair or Opener repair needs.
Trust Browns Garage Door for Expert Service
At Browns Garage Door, we pride ourselves on hard work and integrity, providing professional Garage Door repair and Garage Door Installation services to Tulare, Kings, and Fresno Counties.
With over 30 years of industry experience, we are experts at diagnosing and fixing any garage door issue, from simple Spring Replacement to emergency services. If your door won’t close, our team is ready to provide the fast, reliable service you expect and deserve.
FAQs
Why do my garage door sensors keep getting knocked out of alignment?
Sensors are often installed near the floor and can be easily bumped or kicked by cars, bikes, trash cans, or other objects stored nearby. Loose mounting brackets or vibrations from normal operation can also cause them to shift over time.
What does it mean if one sensor light is green and the other is yellow/amber?
This light pattern is usually normal for most systems. Typically, the yellow or amber light is on the “sending” sensor (the emitter), and the solid green light is on the “receiving” sensor (the photo eye). A solid green light indicates the beam is aligned and properly received.
Can sunlight interfere with my garage door sensors?
Yes, direct, strong sunlight can sometimes interfere with the sensor’s infrared beam, especially if it shines directly into the receiving sensor’s lens. If this is a recurring problem, you may try switching the sensor positions or installing a small shade over the sensor.
How often should I check my garage door sensor alignment?
It is a good practice to check the alignment and clean the lenses every few months as part of routine preventative maintenance. Also, always check the alignment immediately after cleaning out your garage or if an object hits the sensor.
Can I use a broken garage door with misaligned sensors?
No, it is unsafe to use a garage door when the sensors are misaligned or broken. The safety reversal mechanism will not work correctly, which creates a safety hazard for people and pets. Call for Emergency Garge Door Repair if your safety sensors are not working correctly.
Final Takeaway
Keeping your garage door sensors properly aligned ensures smooth operation and safety for your home. Whether you choose to handle it yourself or call our experts, regular maintenance helps prevent costly repairs in the long run.
